Description
Labomed Prima Lite Microscope
CMO 250 mm; modular in mounting and arm accessories
Category: Microscopes and optical instruments
Labomed Prima Light Microscope
- Site visit recommended
- Subject to local engineering
- Requires power connection
Experience the remarkable Prima Light Microscope with exceptional optical resolution and clarity.
Various mount options

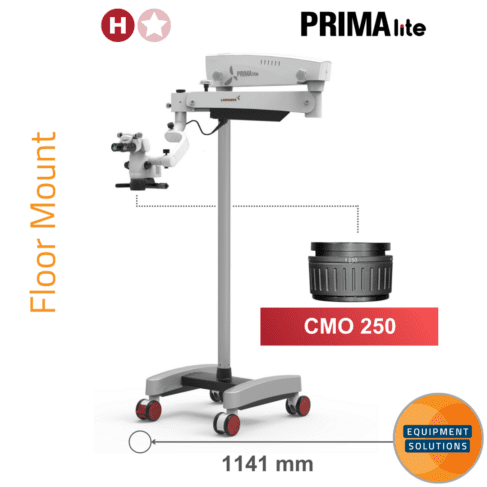

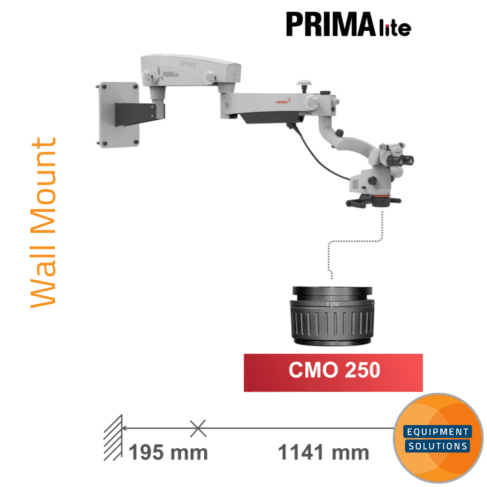

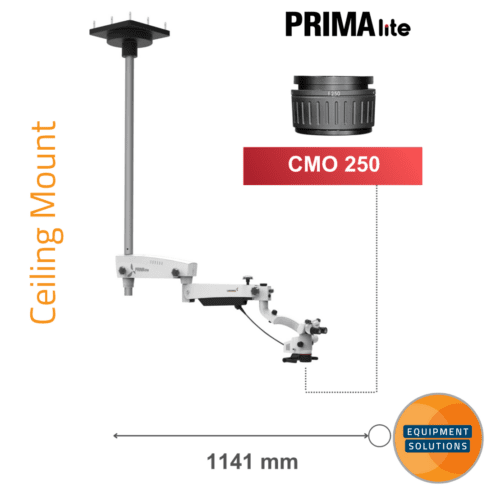

Available with floor mount (mobile), wall mount, or ceiling mount. Systems can also migrate from one mount to another using adapter kits.
Built-in LED
An optical pod equipped with an integrated LED illumination source offers a compact and streamlined design.
Small Footprint
PRIMA lite effortlessly maneuvers in the most space-constrained clinical environments, boasting one of the smallest and lightest footprints in the industry across multiple mounting formats.
Additional Benefits of the Prima Light Microscope include:
Key Features
PRIMA Lite microscope with floor mount, CMO 250 mm, apochromatic 5-step magnichanger, Lux 100 K, and built-in green and yellow filters

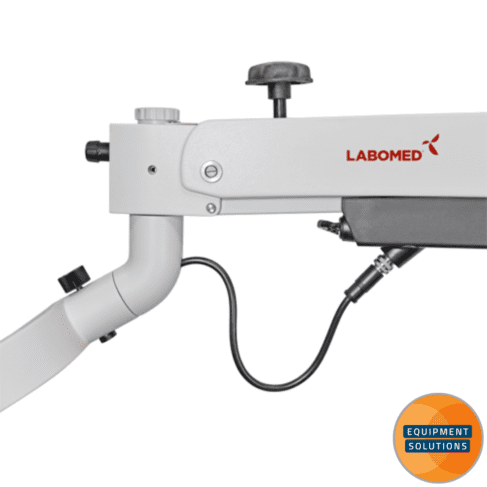

Automatic Balancing Arm
An automatic balancing arm ensures precise stability when mounting cameras and accessories, guaranteeing seamless photo documentation and operation without drift or vibration.

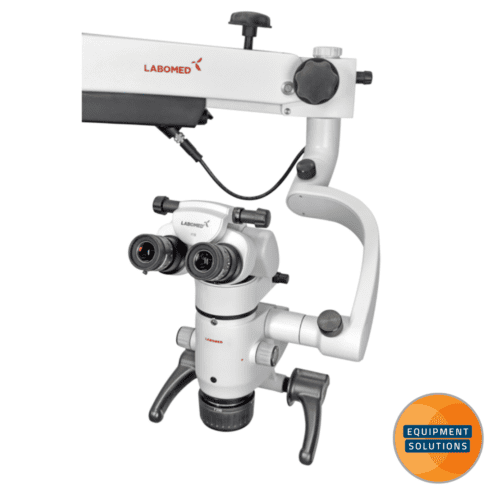

Apochromatic optical design
This compact yet feature-rich system delivers exceptional performance through its apochromatic optical design and Labomed MaxLite optical coatings, providing unparalleled image clarity and field homogeneity in dental procedures.
| The Specification of the Prima Light Microscope | |
| Mounting system: | Available with floor mount (mobile), wall mount, or ceiling mount. Systems can also migrate from one mount to another using adapter kits. |
| Observation Tubes: | 0-210° inclinable binocular tube |
| IPD: | 49-78 mm |

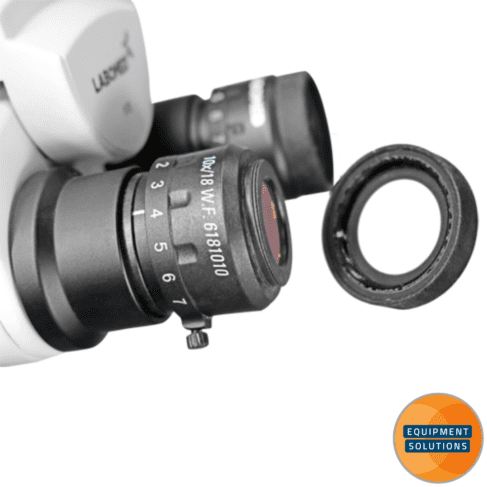

| Eyepieces: | Standard: WF 10x/18 mm with eye guards and dioptre lock. Optional: WF 12.5x/18 mm with eye guards and dioptre lock |
| Dioptre adjustment: | ± 7 |
| Magnichanger: | Apochromatic 5 step: 0,4x, 0,6x, 1,0x, 1,6x and 2,5x MaxLite coated |

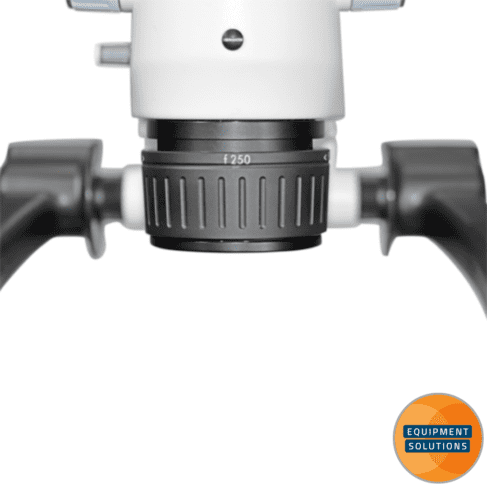

| Objective: | Standard: f 250 mm focusable |
| FOV: | 10.6-66.2 mm |
| Fine Focus: | Manual, adjustment by rotating ring |
| Light Source: | 27 W LED, 100-240 V |
| Lux: | 100 K |
| Maximum Wattage: | 60W |
| Built-in Filters: | Green & Yellow |
| Microscope Carriers: | 120° carrier with fluent movement |
| Optional Accessories: | Double beam splitter inclined, rotoplate, extender, double iris, single beam splitter, ProLine range of camera adapters and smart phone adapters |
