Planmeca ProMax® 3D Classic CBCT
Capture a clear view of the mandible and maxilla
Categories: CBCT (Cone Beam Computed Tomography), CBCT (Cone Beam Computed Tomography)
Planmeca ProMax® 3D Classic CBCT Imaging System
- Site visit recommended
- Subject to local engineering
- Requires power connection
- Critical exam required
- Data point required (Wi-Fi Access & Connection to computer)
- Demo recommended

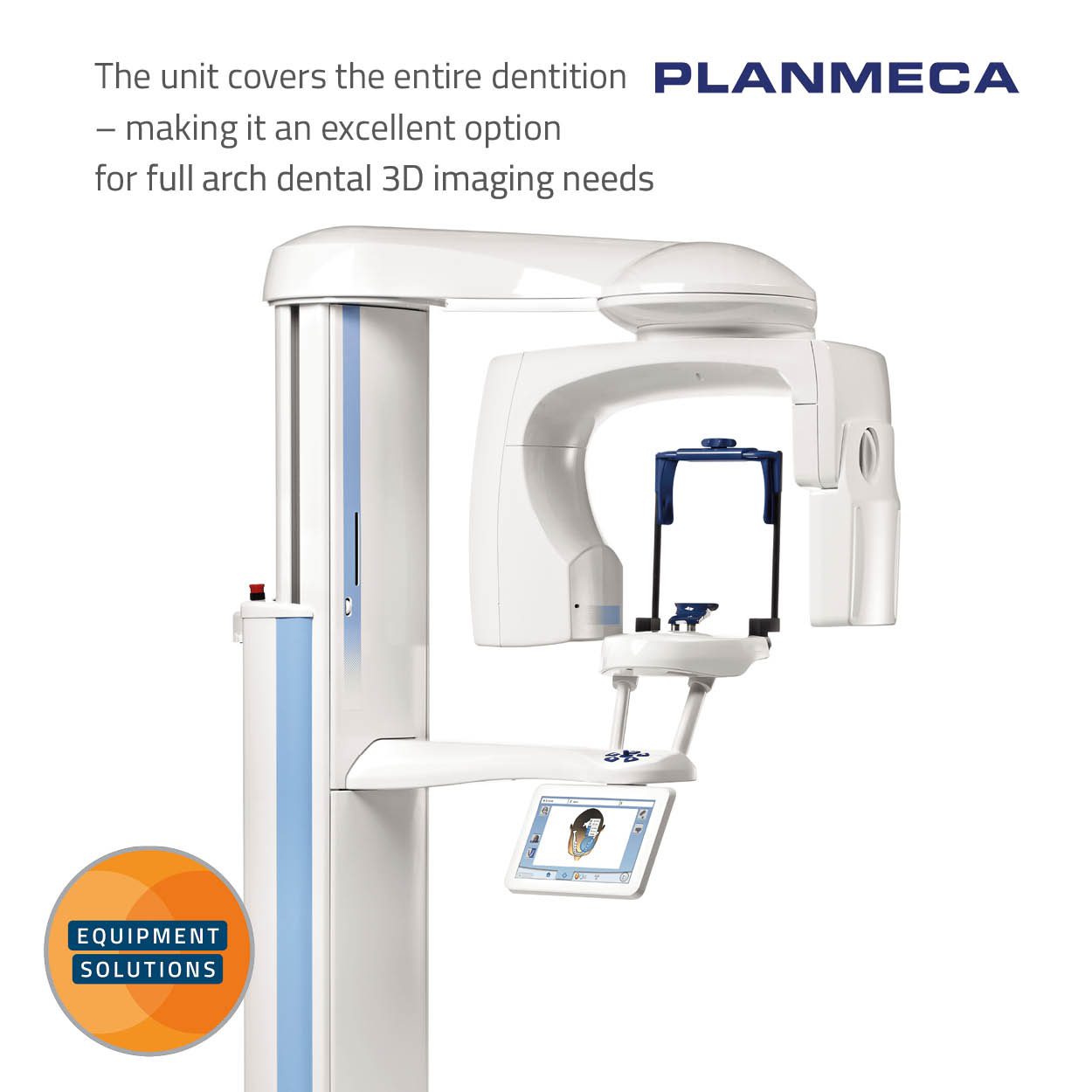

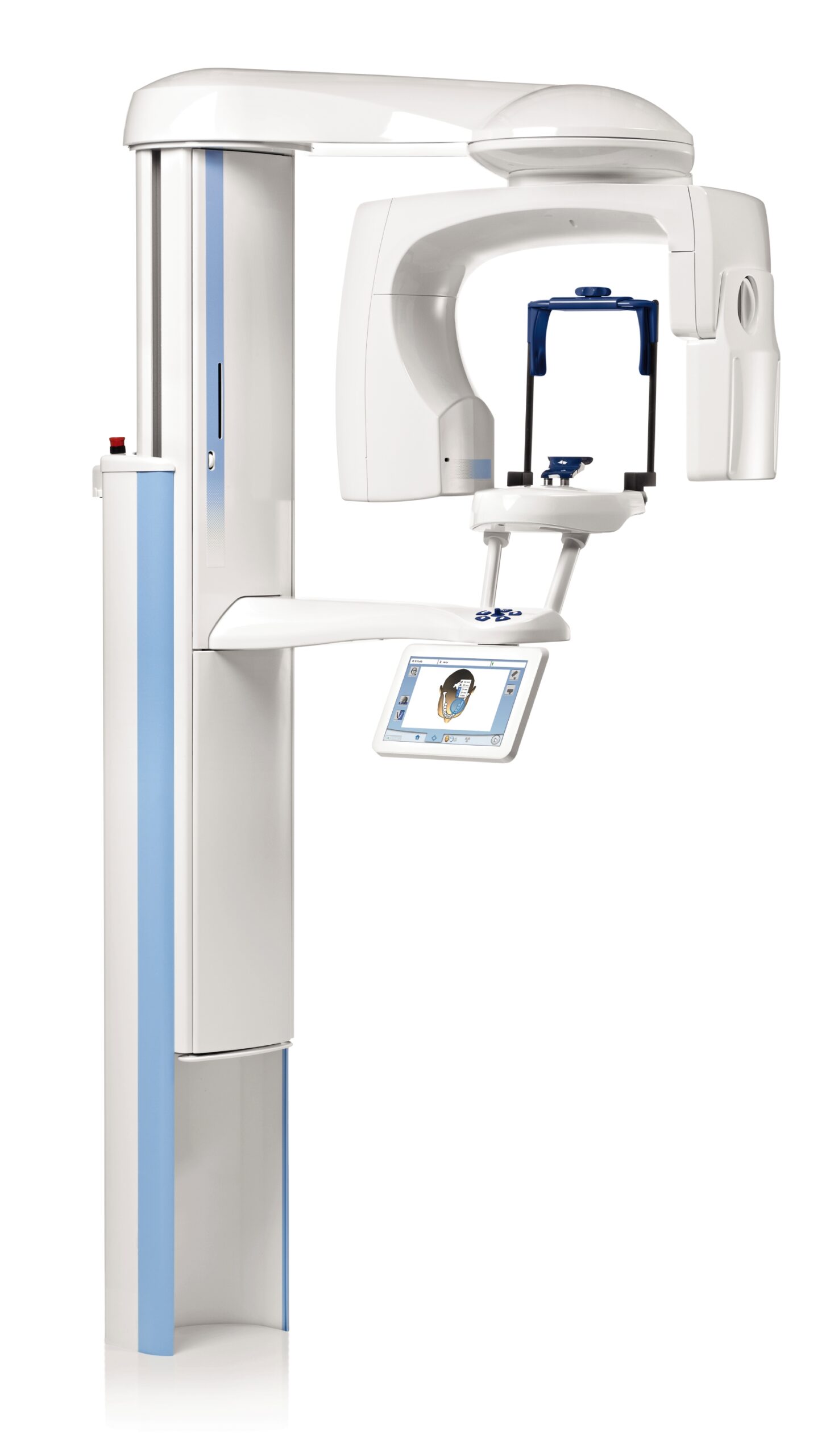

The Planmeca ProMax 3D Classic CBCT is one member of the ProMax family. It provides coverage of the entire dentition, making it an excellent option for full arch dental 3D imaging needs.
Features at a Glance
- High-end unit
- Ultralow dose technology
- Superior Image Quality
- Romexis® imaging software
Planmeca CALM
Patient movement can cause problems when taking 3D images. Planmeca's CALM algorithm allows for the removal of artifacts caused by movement- leading to a much sharper final image without having to re-take images.
Low Dose Images
This is a standard feature on all Planmeca's 3D units. Planmeca's Ultra Low Dose imaging protocol allows you to capture CBCT images with an even lower dose than panoramic images.
All-in-one Imaging Software
The Planmeca Romexis imaging software supports all 2D and 3D imaging as well as CAD/CAM work. The software offers an extended range of tools for dental clinics of all sizes.
Planmeca was established in 1971 and is a Finnish manufacturer of high-tech dental equipment, such as 3D and 2D digital imaging devices, dental units, CAD/CAM solutions, and software. Planmeca offer dental clinics a completely digital solution, based on the capability to network all digital dental equipment with one software platform.
Extended Volume Size
Planmeca ProMax 3D Classic offers an exclusive extended volume diameter size. It is ideal for capturing the full dentition with one scan and increases the maximum diameter from Ø80x80 to up to Ø110x80 mm.
See Even the Finest Details
Planmeca's endodontic mode offers an extremely high resolution with a voxel size of 75 μm. Optimal for capturing even the smallest details, the mode enables precise diagnostics and treatment planning.
Planmeca CALM
Planmeca's CALM movement correction algorithm helps to remove movement artifacts from CBCT images meaning you don't have to re-take images which takes up time, energy and money.
Ideal for Imaging Braces
Planmeca ProMax 3D Classic’s Braces imaging protocol is ideal for orthodontics, as images captured using it shows metal brackets with true precision. The unit has been certified for use with the SureSmile treatment system.
| Specifications for the Planmeca ProMax® 3D Classic CBCT: | |
| Anode voltage | 60–90 kV |
| Anode current | 1–14 mA |
| Focal Spot | 0.5 mm, fixed anode |
| Image detector | Flat panel |
| Image acquisition | Single 200 degree rotation |
| Scan time | 7.5–27 s |
| Typical reconstruction time | 2–25 s |
