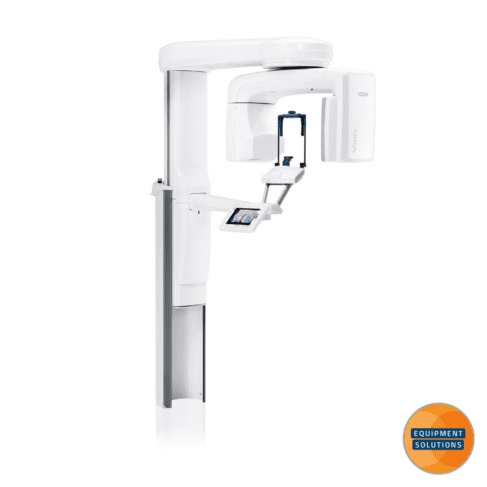

Planmeca Viso G3® CBCT Digital Imaging Unit

The Planmeca Viso G3® CBCT Digital Imaging System is a configuration of Planmeca Viso G5, offering premium imaging of the whole dentition. The unit is also able to capture detailed panoramic as well as extraoral bitewing images for interproximal diagnostics.

Volume Sizes

From 3 x 3 to 20 x 10 cm.

Versatility

Planmeca Viso offers a wide selection of volumes to cover all clinical needs – from a single tooth to a full skull. The sensor of the 3D units is also fully capable of 2D imaging.

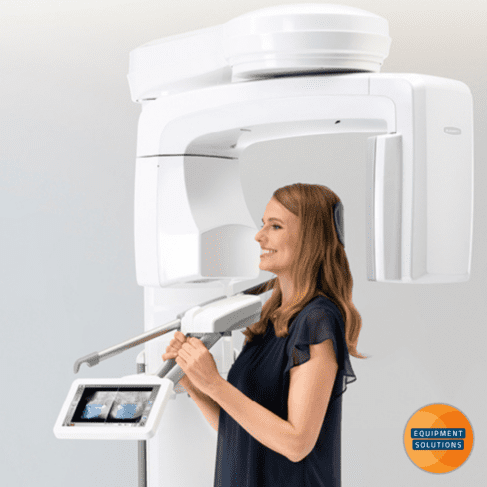

Live Virtual FOV Positioning

Patient positioning is done directly from the unit’s control panel utilising integrated cameras and a live patient view, which allows seeing the patient live from the control panel for flexible and exact FOV positioning. The volume size can also be adjusted freely.

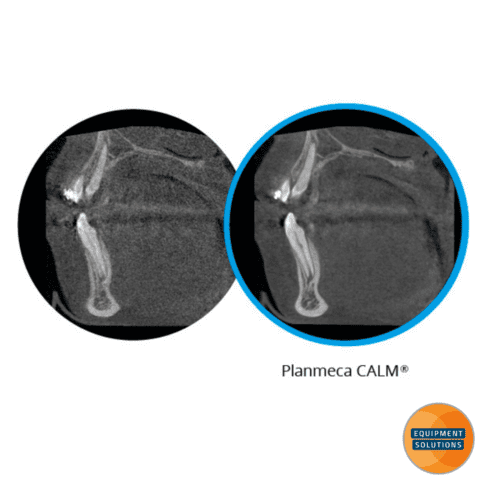

Planmeca CALM

Our intelligent Planmeca CALM movement correction algorithm for Planmeca 3D imaging units is excellent for imaging patients who have a difficult time remaining completely still. It eliminates the need for retakes by cancelling the effects of patient movement.

Planmeca Ultra Low Dose

All Planmeca CBCT units offer the unique and scientifically proven Planmeca Ultra Low Dose™ imaging protocol. It allows clinicians to acquire 3D images at significantly lower effective patient doses without a statistical reduction in image quality.

Planmeca was established in 1971 and is a Finnish manufacturer of high-tech dental equipment, such as 3D and 2D digital imaging devices, dental units, CAD/CAM solutions, and software. Planmeca offer dental clinics a completely digital solution, based on the capability to network all digital dental equipment with one software platform.

Improved Planmeca ProFace Photos

Planmeca Viso 3D imaging units come with a unique way of capturing face photos with the Planmeca ProFace® option. The sensor of the units has four built-in cameras and LED light strips for capturing highly detailed 3D photographs. These can be combined with intraoral scans and CBCT images of your patient to enrich 3D treatment plans – creating a virtual patient.

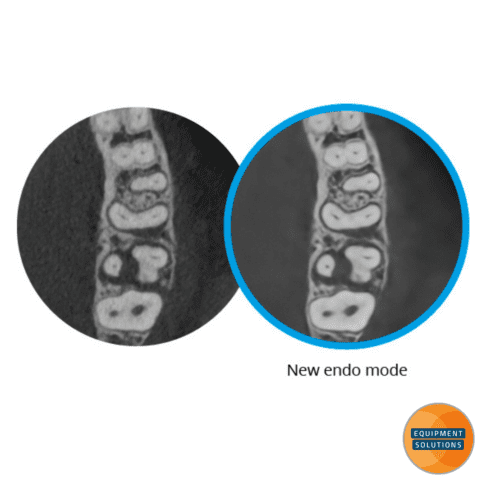

Cutting-edge endodontic imaging

Noise is often inherent to endodontic imaging due to the high resolution required to capture small details. Our AI-based 3D endodontic imaging mode for Planmeca Viso 3D units combats this issue and allows capturing clear and smooth CBCT images that are perfect for endodontics. In addition to new unit deliveries, the imaging mode is available for existing units with a software update.

120 kV Tube Voltage

Planmeca Viso’s 120 kV tube voltage enables optimised quality for challenging imaging cases – reducing artifacts and ensuring great image quality also when imaging patients with larger heads.

Cephalostat option

Planmeca Viso can be equipped with a Planmeca ProCeph™ one-shot cephalostat. One-shot ceph acquisition takes less than a second and eliminates the risk of patient movement. It is particularly beneficial when imaging young children and other patients that have a tendency to move during imaging.
