Description

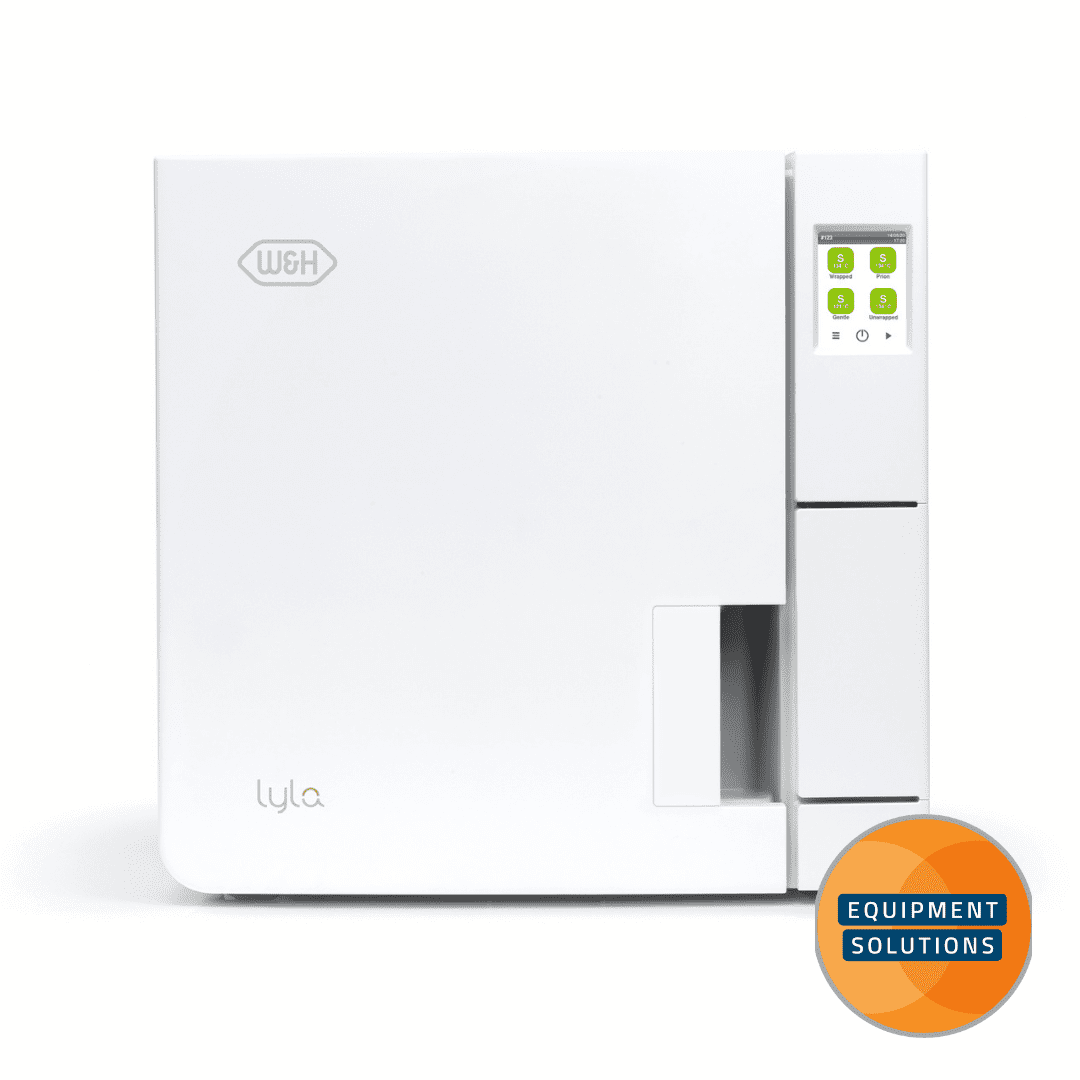

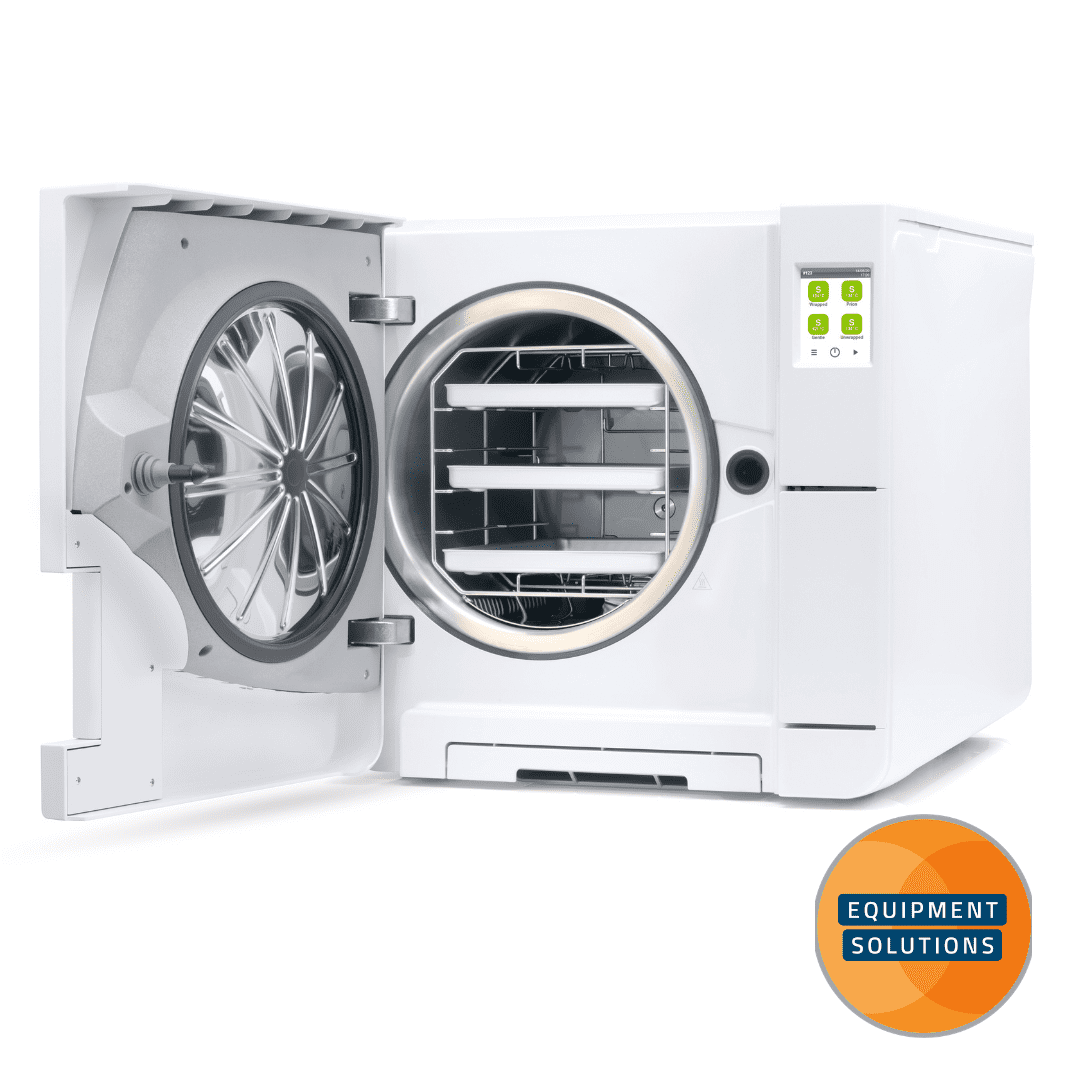

W&H Lyla Autoclave
S Type to B Type when you're ready
Category: Dental Autoclaves
W&H Lyla Autoclave Class S
- Subject to local engineering
- Validation required
- Requires power connection
The W&H Lyla autoclave is an S type unit that can be upgraded to a B type, in line with your practice requirements.
The Lyla is one of the W&H family of sterilizers and decontamination equipment which are known throughout the industry, for their reliability. W&H’s upgrades options address the important considerations of efficiency and long-term operational costs. The Lyla is a modern, quality-built machine for today's dental practice, where economy, performance and compliance are the overriding requirements.
Upgrade when your practice is ready
Lyla offers economical class S sterilization (in accordance with European standards). The Lyla offers unique upgrade flexibility using activation codes to add a B Cycle, remote data storage or increased traceability. With the purchase of the W&H ' All-in-One' activation card for your Lyla autoclave, you can gain access to all of these additional features, including the B Cycle (according EN 13060).
High Level of Reliability
This is reflected in the major service interval being set at either 4,000 cycles or 3 years, whichever comes first. Please note that an annual service is always recommended to ensure that your sterilizer is working at its most effective.
Two sizes of chamber available
Available in either the 17 or 22 litre unit.
Super Fast Cycle
Speed is essential in any busy practice. The Lyla 17 offers a cycle time of 23 minutes based on an average 2kg load for immediate use.
See ‘Key Features’ tab for the range of cycles for both packaged and unpackaged products.
Test Functions
Pre-programmable vacuum and helix test function to run automatically outside surgery hours
W&H are industry leaders from Austria, and are very well respected amongst the dental community. W&H can assure their customers of quality, craftsmanship and reliability in every product. The range of W&H autoclaves is renowned for its reliability, innovation and robustness.
Additional Benefits of the W&H MS include:
Ease of Use
The clear layout of the screen and uncomplicated arrangement of buttons ensure that the Lyla sterilizer is operated simply and easily. Other ease of use features include:
- Colour Touch Screen for speed
- Simple manual water filling with an integrated funnel
- A water tank cover that can be easily removed without the need for tools
- Smooth surfaces that are easy to clean.
Traceability with optional upgrade
The USB data logger ensures you can quickly and easily document cycles for legal protection. An additional LisaSafe label printer can be added and to work in combination with the logger. A bar code reader can be used to scan labels into patient records and ensure efficiency and safety.
Cycle Times
| Sterilisation Cycle | S Wrapped 134 | S Prion 134 | S Gentle 121 | S Unwrapped 134 |
| Temperature | 134 degrees C | 134 degrees C | 121 degrees C | 134 degrees C |
| Holding Time | 4' | 18'30'' | 20'30'' | 4' |
| Total cycle duration including complete drying | Typical Load | Typical Load | Automatic | Typical Load |
| Lyla 17: | 42' | 56' | 61'-64' | 23' |
| Lyla 22: | 43' | 57' | 62'-66' | 24' |
| Max Load Lyla 17/22: | Max 4kg / Typical 2kg | Max 4kg / Typical 2kg | Max 4kg / Typical 2kg | Max 4kg unwrapped |
| Max,. Containers load: | Max 4kg | Max 4kg | Max 4kg | N/A |
| Test Cycles: | Bowie & Dick/ Vacuum if upgraded | Bowie & Dick/ Vacuum if upgraded | Bowie & Dick/ Vacuum if upgraded | Bowie & Dick/ Vacuum if upgraded |
| The Specification of the W&H Lyla autoclave 17 & 22 Litre: | |
| Chamber Size | 17 or 22 |
| Power Supply | 200 / 240 V AC 10 A single phase |
| Power Consumption | 2.0-2.4 kW |
| Overall dimension (w x h x d): | Width: 465 mm - Height: 452 mm - Depth: 646 mm |
| Weight (empty): | 40kg |
| Mean sound levels (LWA): | 65.5 dB |
| Main/Used water tanks: | 4.8 / 4.8 litre |
| Connection types: | 1 USB port in the front (additional in rear as option) Automatic Water Filling Kit - Optional |
| Lyla autoclaves were designed, certified and validated with the most stringent directives and standards: | |
| 93/42/EEC | Medical Device Directive (MDD) |
| 2014/68/EU | Pressure Equipment Directive PED |
| EN 13060 | Small steam sterilizer |
| IEC 61010-1 | Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements |
| IEC 61010-2-040 | Safety requirements for electrical equipment for measurement, control and laboratory use; particular requirements for autoclaves using steam for the treatment of medical materials and for laboratory processes |
| EN 61326-1 | Electrical equipment for measurement, control and laboratory use: EMC requirements |
| IEC 61770 | Electric Appliances connected to the water mains. |
